Fully Automatic ATF & DCTF ExchangerAUTO 2010 HYBRIDPDF Down
Specifications
| Size | Width | 535mm | Hose Length | IN Hose | 2500mm |
|---|---|---|---|---|---|
| Depth | 510mm | OUT Hose | 2500mm | ||
| Height | 1100mm | Weight | 100kg | ||
| Control Unit | PCB Control Board | ||||
| Accuracy | ± 200cc | ||||
| Power | AC 220V / 60Hz or 230V / 50Hz | ||||
| Motor | ¼ HP Motor, 2EA | ||||
| Pump | Trochoid Pump, 2EA | ||||
| Capacity | |||||
| Tank Capacity | New ATF oil | 22L | |||
| Waste ATF oil | 22L or Drain Tank | ||||
| New DCT(DSG) oil | 12L | ||||
Use Info
If you misconnect the hoses the IN/OUT puts within our machine then you can quickly reverse the flow of the fluid to the right way by pressing this button.
This machine can be used to exchange ATF,DCT and CVT.
This machine can measure the oil temperature without having to place a scanner inside the equipment.
Our machine will automatically calculate the exact volume of old and new fluid to be exchanged.
Even without a dipstick, our machine makes filling flush chemicals into cars easy.
The old fluid can be drained directly to the outside drainer during the exchange.
Our machine can handle many different types of fluids to satisfy the needs of all car manufacturers.
Our machine is equipped with a backlight behind the sight glass so that you can easily see the color of the fluids during the process.

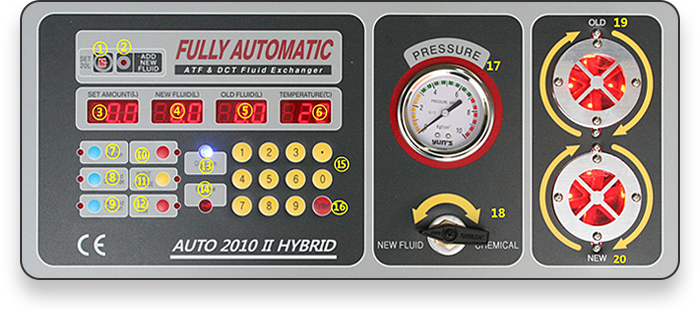

Functional Description of Operating Panel
01. SET 20ℓ
When putting in a new pail, you need to set the desired amount of new fluid.
Then you can check the current fluid amount in the new oil tank.
02. ADD NEW FLUID
The light will turn on if you set the amount of new oil to be added to a value greater than what is currently in the machine.
03. SET AMOUNT
The amount of fluid to be exchanged will be shown in the display labeled 'SET AMOUNT'.
04. NEW FLUID
The amount of new fluid will be shown within the display labeled 'NEW FLUID' during the exchange process.
05. OLD FLUID
The amount of old fluid will be shown within the display labeled 'OLD FLUID' during the exchange process.
06. TEMPERATURE
The oil temperature will be shown within the display labeled 'TEMPERATURE' during the exchange process.
07. DCTF INJECTION
Press to fill the vehicle with DCT fluid.
08. OLD FLUID DISCHARGE
Press to discharge used fluid from vehicle. Press once again to stop.
09. NEW FLUID INJECTION
Press to inject new fluid into vehicle. Press once again to stop.
10. CLEAR
Press to reset 'SET AMOUNT', 'NEW FLUID' AND 'OLD FLUID' settings to zero.
11. CHANGE IN/OUT PORT
If you misconnect the hoses the IN/OUT puts within our machine then you can quickly reverse the flow of the fluid to the right way by pressing this button.
12. START ＆ STOP
Press to start, pause and continue the oil exchange process.
13. CIRCULATION MODE
Led lamp on after power on during circulation.
14. EXCHANGE MODE
Led lamp on after pushing start button during oil exchange.
15. Number Pad
Exchanging quantity setting button. → Setting can be made by 0.1L Press the quantity to set and press "Enter" to complete setting.
16. Pressure Gauge
Gauge for the transmission pressure.
17. New ATF oil/Chemical Exchange Valve
Turn valve to select whether to inject chemicals or add new ATF fluid.
18. OLD OIL SIGHT GLASS
Window for new oil.
19. NEW OIL SIGHT GLASS
Window for old oil.
